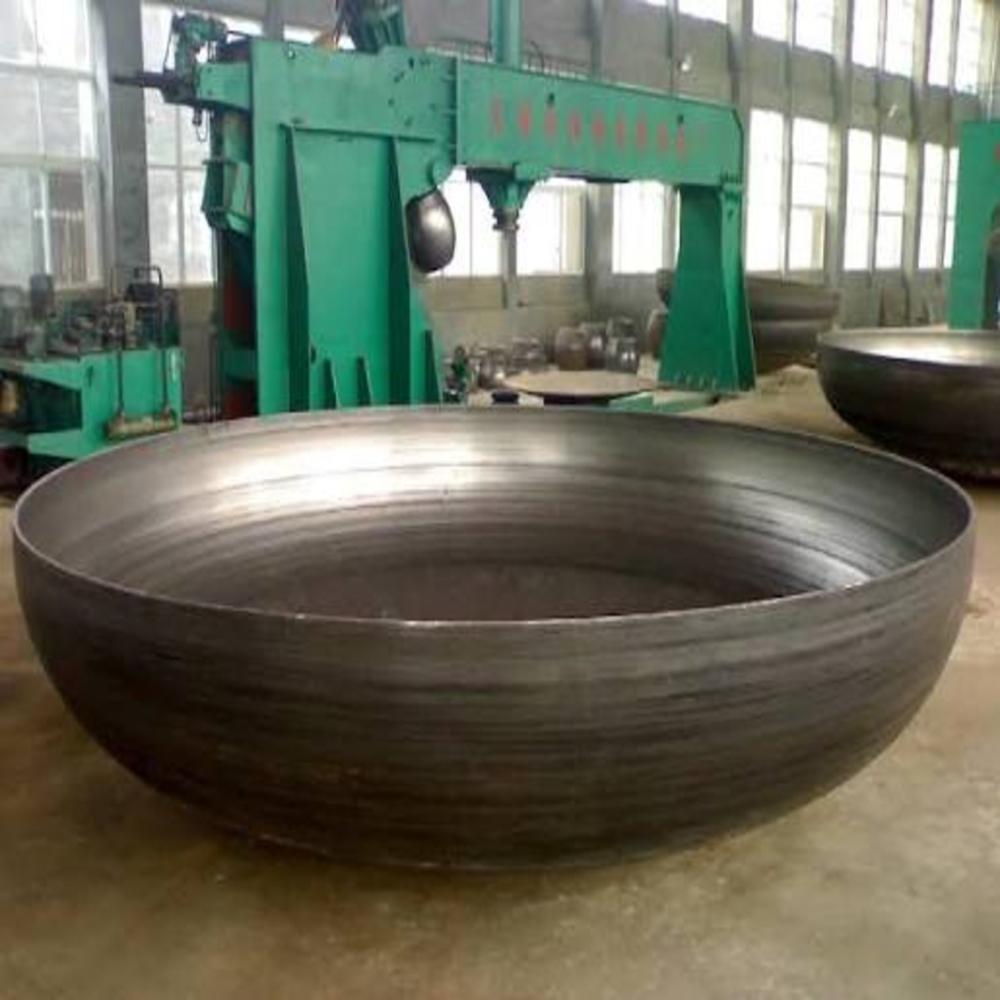

High Pressure Dish End

High Pressure Dish End Specification

Material
High-Grade Steel

Capacity
Customizable as per requirement

Shape
Dish End (Spherical or Elliptical)

Application
Pressure Vessels, Boilers, Heat Exchangers, Storage Tanks

Surface Finish
Smooth/Shot Blasted

Diameter Range
Up to 5000 mm (custom sizes available)

Edge Preparation
Bevelled or Plain

Heat Treatment
Stress Relieved/Normalized on request

Usage Environment
Suitable for high pressure and temperature conditions

Type
Hemispherical/Ellipsoidal/Torispherical

Weldability
Excellent - suitable for welding to matching shell

Manufacturing Process
Hot Formed or Cold Formed

Thickness
As required, can range from 4 mm to 100 mm

Corrosion Resistance
Available with coatings or in corrosion-resistant grades

Testing
Ultrasonic, Radiography, Mechanical Testing as per code

Pressure Rating
High Pressure (as per design requirement)

Customization
Dimensions, material grade, and technical features customizable

About High Pressure Dish End

A high-pressure dish end (or tank head) is a curved, structural cap welded to the ends of cylindrical pressure vessels, boilers, and storage tanks. It contains extreme internal or external pressure while ensuring uniform stress distribution and preventing failure

Advanced Manufacturing for Exceptional Strength

Our dish ends are crafted using both hot-formed and cold-formed processes, based on your specification. This guarantees optimal mechanical properties, stress distribution, and dimensional accuracy. The use of high-grade steel further ensures outstanding performance under high-pressure and temperature environments, making them ideal for critical industrial applications such as pressure vessels and heat exchangers.

Customizable Solutions for Every Requirement

With a versatile diameter range up to 5000 mm and thicknesses as required, our dish ends can be tailored to your precise application. We offer a variety of coatings and corrosion-resistant grades, edge preparations, and stress-relieving processes. You benefit from maximum design flexibility, with a product customized to support both standard and unique operational demands.

Strict Quality Control for Peace of Mind

Each dish end undergoes comprehensive non-destructive and mechanical testing consistent with industry standards. Options like ultrasonic and radiographic inspection ensure safety and reliability. Our rigorous quality management process means you receive products that meet both technical and safety requirements for the most challenging environments.

FAQ's of High pressure dish end:

Q: How do I select the appropriate dish end type for my pressure vessel?

A: Choosing the right dish end-hemispherical, ellipsoidal, or torispherical-depends on your vessel's operating pressure, temperature, and design code requirements. Our team can assist in evaluating your specifications to recommend the most suitable type for optimal performance and safety.

Q: What manufacturing processes are used for these high pressure dish ends?

A: We use both hot forming and cold forming processes. The choice depends on material thickness and design requirements, ensuring the dish ends have excellent mechanical properties and integrity as per your application's needs.

Q: When is surface treatment or heat treatment necessary for dish ends?

A: Surface treatments, such as shot blasting or special coatings, are applied to enhance corrosion resistance. Heat treatments like stress relieving or normalization are available upon request, especially useful in applications demanding higher toughness or when post-fabrication stresses need mitigation.

Q: Where can these dish ends be used?

A: Our dish ends are suitable for use in high-pressure and high-temperature environments, including pressure vessels, boilers, heat exchangers, and storage tanks across multiple industries such as chemical, petrochemical, power, and water treatment plants.

Q: What are the benefits of customizing the dish end's dimensions and material?

A: Customization allows the dish end to perfectly fit your equipment, maximizing safety, efficiency, and lifespan. Additionally, selecting corrosion-resistant grades or applying special coatings ensures longevity even in aggressive operating conditions.

Q: Is testing performed on all dish ends before delivery?

A: Yes, each dish end undergoes thorough inspections, including ultrasonic, radiographic, and mechanical testing, following the relevant codes to guarantee safety, reliability, and performance under operational conditions.
